RZQ045P01TR

RZQ045P01TR

Part NumberRZQ045P01TR

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 12V 4.5A TSMT6

DatasheetRZQ045P01 ~

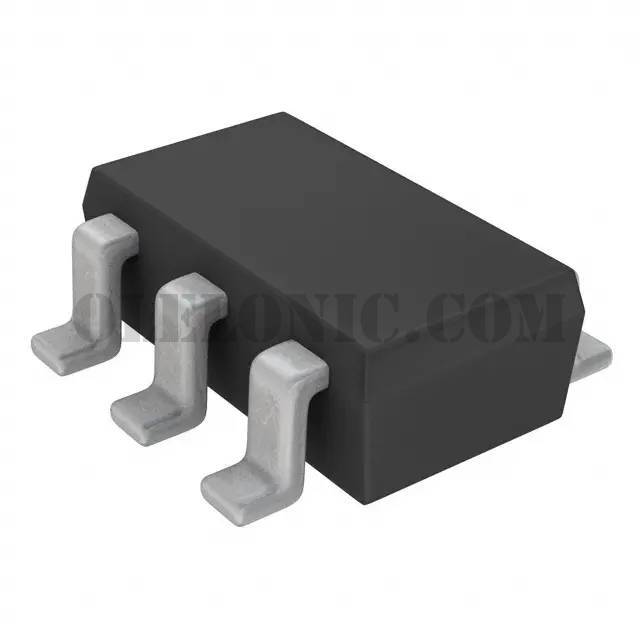

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 4.5A (Ta) 1.25W (Ta) Surface Mount TSMT6 (SC-95)

To learn about the specification of RZQ045P01TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RZQ045P01TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RZQ045P01TR.
We are offering RZQ045P01TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RZQ045P01TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RZQ045P01 ~
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	35mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	31nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	2450pF @ 6V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TSMT6 (SC-95)
Package / Case	SOT-23-6 Thin, TSOT-23-6
