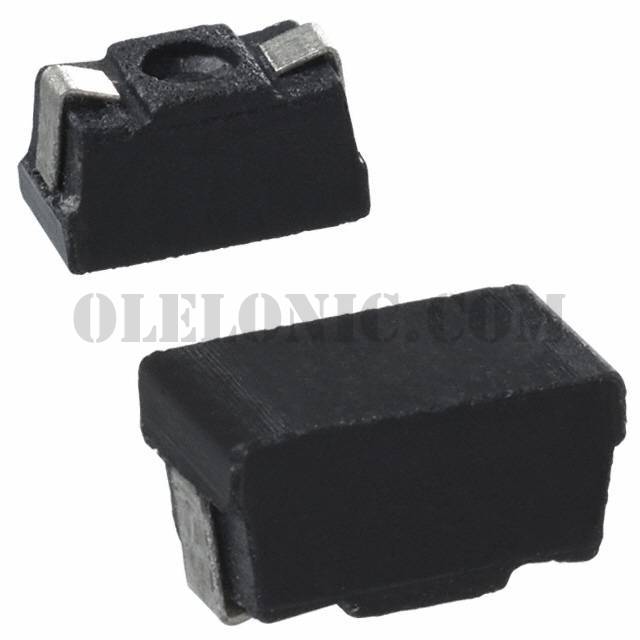

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	Surface Mount Power
Standard Package	100
Manufacturer	Ohmite
Series	RW
Packaging	Bulk
Part Status	Active
Resistance	470 mOhms
Tolerance	±5%
Power (Watts)	1W
Composition	Wirewound
Features	Current Sense
Temperature Coefficient	±90ppm/°C
Operating Temperature	-55°C ~ 150°C
Package / Case	2512 J-Lead
Supplier Device Package	SMD J-Lead, Pedestal
Size / Dimension	0.246" L x 0.136" W (6.25mm x 3.45mm)
Height - Seated (Max)	0.141" (3.58mm)
Number of Terminations	2
Failure Rate	-

RW2R0DAR100JE	Ohmite, 100 mOhms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW2S0CBR300JE	Ohmite, 300 mOhms ±5% 2W Chip Resistor 4122 J-Lead Current Sense Wirewound, RW	View
RW2S0DA1R00JET	Ohmite, 1 Ohms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW2R0DAR100JET	Ohmite, 100 mOhms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW0S6BBR100FET	Ohmite, 100 mOhms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View
RW2S0DA10R0JE	Ohmite, 10 Ohms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW1S0BAR005JE	Ohmite, 5 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW0S6BB15R0FET	Ohmite, 15 Ohms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View
RW0S6BBR020FET	Ohmite, 20 mOhms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View
RW1S0BAR010FE	Ohmite, 10 mOhms ±1% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW2S0CBR050JET	Ohmite, 50 mOhms ±5% 2W Chip Resistor 4122 J-Lead Current Sense Wirewound, RW	View
RW0S6BBR020FET	Ohmite, 20 mOhms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View

RW1S0BAR470JE

Part NumberRW1S0BAR470JE
