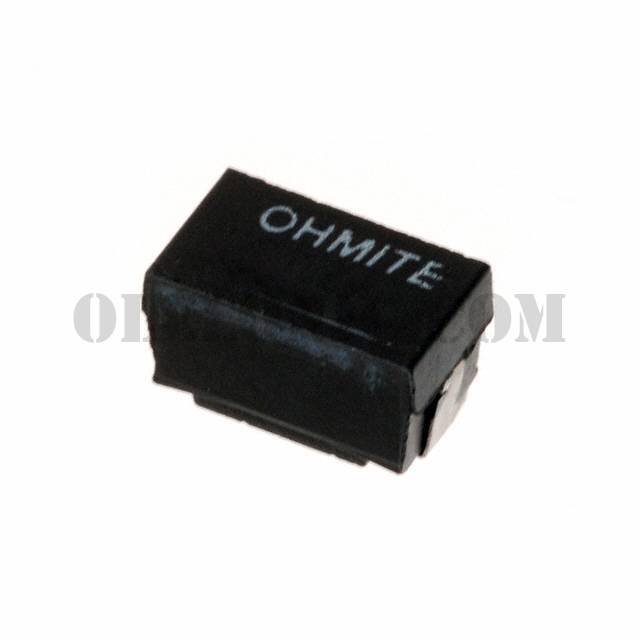

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	Surface Mount Power
Standard Package	100
Manufacturer	Ohmite
Series	RW
Packaging	Bulk
Part Status	Active
Resistance	10 mOhms
Tolerance	±5%
Power (Watts)	2W
Composition	Wirewound
Features	Current Sense
Temperature Coefficient	±90ppm/°C
Operating Temperature	-55°C ~ 150°C
Package / Case	4122 J-Lead
Supplier Device Package	SMD J-Lead, Pedestal
Size / Dimension	0.407" L x 0.226" W (10.34mm x 5.74mm)
Height - Seated (Max)	0.227" (5.77mm)
Number of Terminations	2
Failure Rate	-
