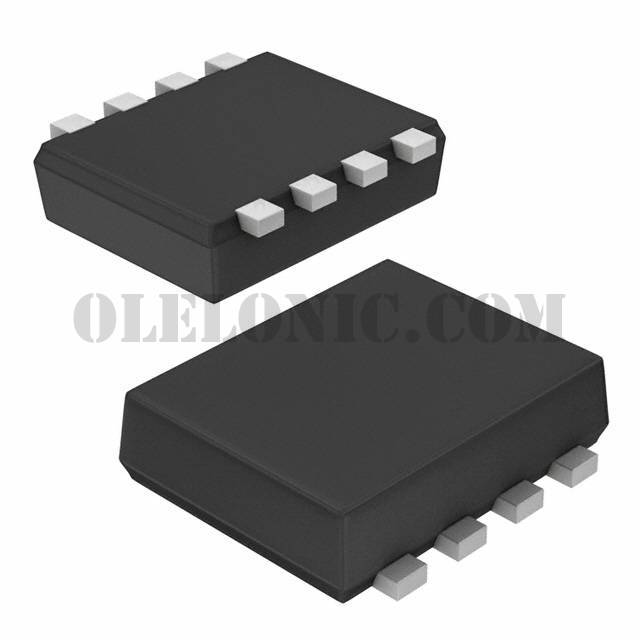

RQ7E055ATTCR

RQ7E055ATTCR

Part NumberRQ7E055ATTCR

ManufacturerRohm Semiconductor

DescriptionPCH -30V -5.5A MIDDLE POWER MOSF

DatasheetRQ7E055AT

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 5.5A (Tc) 1.5W (Tc) Surface Mount TSMT8

To learn about the specification of RQ7E055ATTCR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RQ7E055ATTCR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RQ7E055ATTCR.
We are offering RQ7E055ATTCR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RQ7E055ATTCR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RQ7E055AT
Standard Package	3000
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	24.5mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	18.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	860pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TSMT8
Package / Case	8-SMD, Flat Lead
