RQ3E120BNTB

RQ3E120BNTB

Part NumberRQ3E120BNTB

ManufacturerRohm Semiconductor

DescriptionMOSFET N-CH 30V 12A HSMT8

DatasheetRQ3E120BN

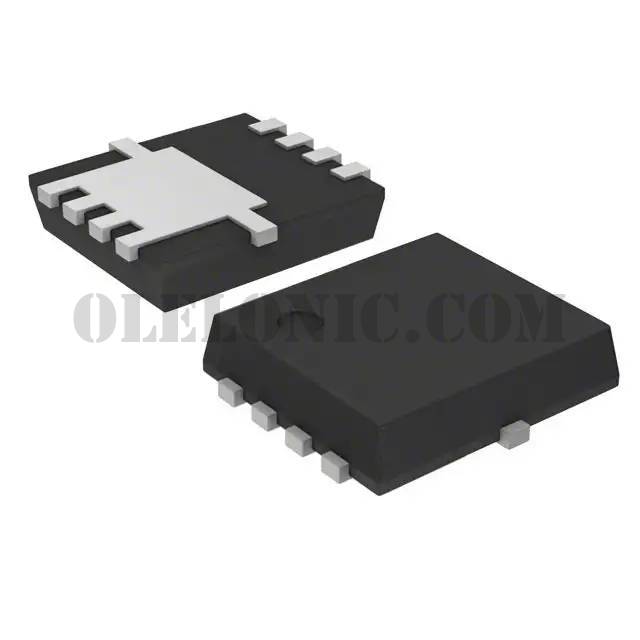

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 12A (Ta) 2W (Ta) Surface Mount 8-HSMT (3.2x3)

To learn about the specification of RQ3E120BNTB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RQ3E120BNTB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RQ3E120BNTB.
We are offering RQ3E120BNTB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RQ3E120BNTB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RQ3E120BN
Standard Package	3000
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.3mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	29nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1500pF @ 15V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HSMT (3.2x3)
Package / Case	8-PowerVDFN
