Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNS Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RNS
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	49mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	220mA @ 120Hz
Ripple Current @ High Frequency	2.2A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

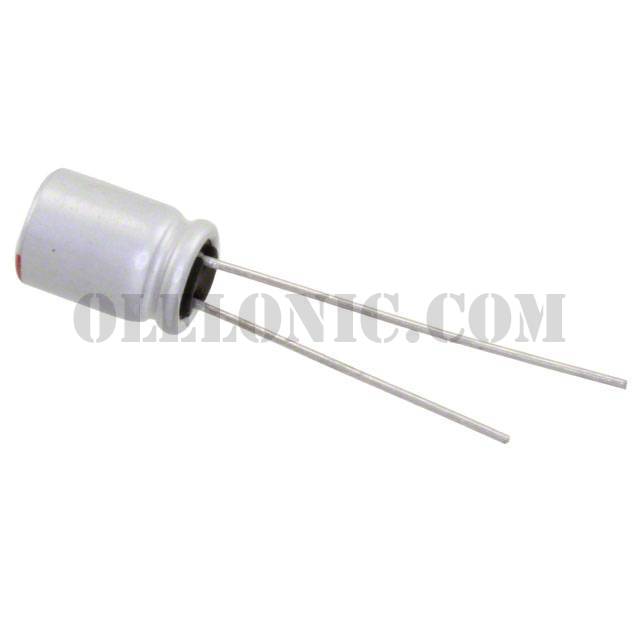

RNS1D330MDS1JX	Nichicon, 33µF 20V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
