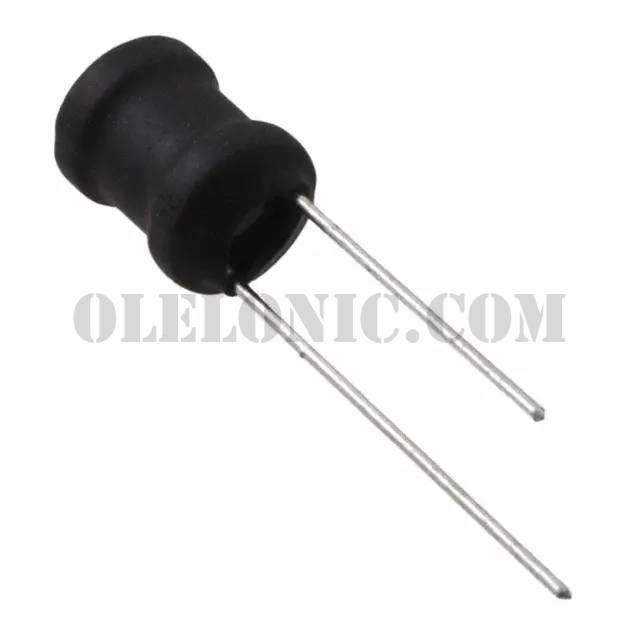

RLB9012-103KL

RLB9012-103KL

Part NumberRLB9012-103KL

ManufacturerBourns Inc.

DescriptionFIXED IND 10MH 170MA 25.1 OHM TH

DatasheetRLB9012 Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10mH Unshielded Wirewound Inductor 170mA 25.1Ohm Max Radial, Vertical Cylinder

To learn about the specification of RLB9012-103KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RLB9012-103KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RLB9012-103KL.
We are offering RLB9012-103KL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RLB9012-103KL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RLB9012 Series
Standard Package	200
Manufacturer	Bourns Inc.
Series	RLB9012
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10mH
Tolerance	±10%
Current Rating (Amps)	170mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	25.1Ohm Max
Q @ Freq	15 @ 79kHz
Frequency - Self Resonant	320kHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.354" Dia (9.00mm)
Height - Seated (Max)	0.480" (12.20mm)
Base Part Number	RLB9012
