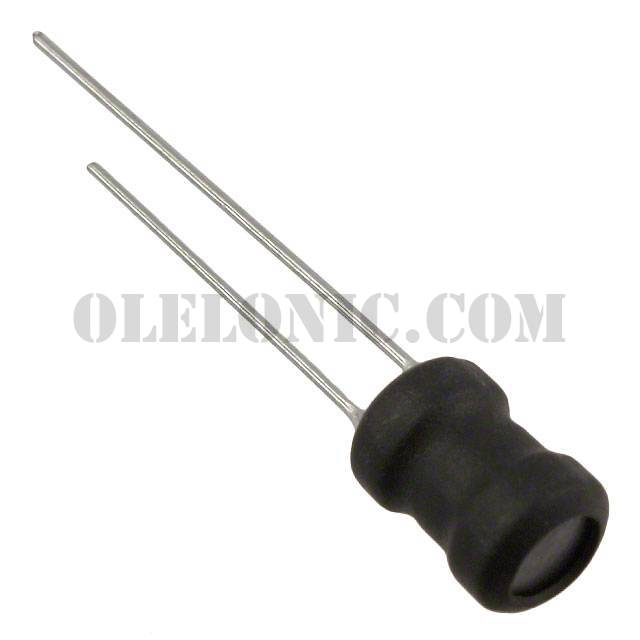

RLB0812-103KL


RLB0812-103KL

Part NumberRLB0812-103KL

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RLB0812-103KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package400
ManufacturerBourns Inc.
SeriesRLB
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10mH
Tolerance±10%
Current Rating (Amps)34mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)39Ohm Max
Q @ Freq60 @ 79.6kHz
Frequency - Self Resonant360kHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test79.6kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.264" Dia (6.70mm)
Height - Seated (Max)0.433" (11.00mm)
Base Part NumberRLB0812
