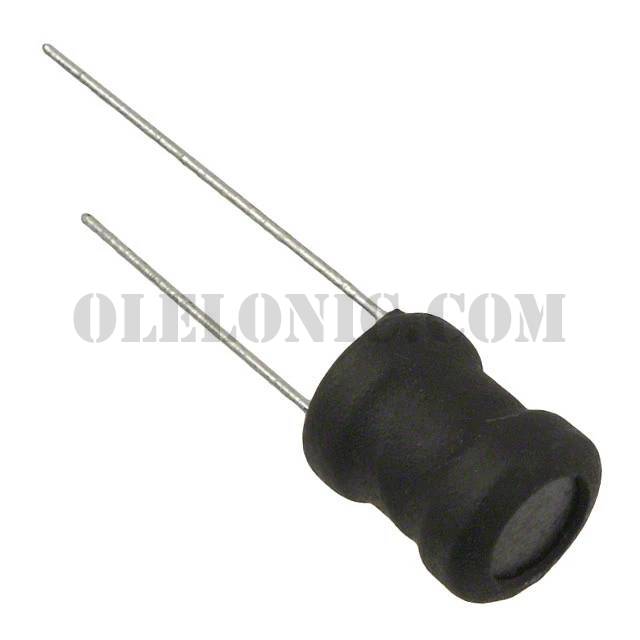

RLB0914-121KL


RLB0914-121KL

Part NumberRLB0914-121KL

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RLB0914-121KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerBourns Inc.
SeriesRLB
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance120µH
Tolerance±10%
Current Rating (Amps)1.05A
Current - Saturation1.9A
ShieldingUnshielded
DC Resistance (DCR)320mOhm Max
Q @ Freq30 @ 796kHz
Frequency - Self Resonant3MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test796kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.343" Dia (8.70mm)
Height - Seated (Max)0.512" (13.00mm)
Base Part NumberRLB0914
