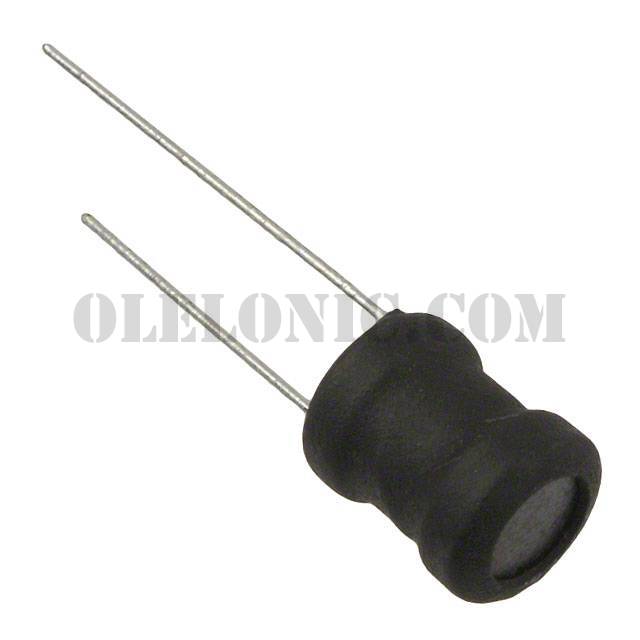

RLB1014-563KL

RLB1014-563KL

Part NumberRLB1014-563KL

ManufacturerBourns Inc.

DescriptionFIXED IND 56MH 18MA 200 OHM TH

DatasheetRLB Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description56mH Unshielded Wirewound Inductor 52mA 200Ohm Max Radial, Vertical Cylinder

To learn about the specification of RLB1014-563KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RLB1014-563KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RLB1014-563KL.
We are offering RLB1014-563KL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RLB1014-563KL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RLB Series
Standard Package	150
Manufacturer	Bourns Inc.
Series	RLB
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	56mH
Tolerance	±10%
Current Rating (Amps)	52mA
Current - Saturation	60mA
Shielding	Unshielded
DC Resistance (DCR)	200Ohm Max
Q @ Freq	35 @ 79.6kHz
Frequency - Self Resonant	150kHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	79.6kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.343" Dia (8.70mm)
Height - Seated (Max)	0.512" (13.00mm)
Base Part Number	RLB1014
