Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	360
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage Rating - AC	650V
Voltage Rating - DC	1600V (1.6kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.433" W (26.50mm x 11.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76QI2220JE40J	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI26804030J	KEMET, 0.068µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI24704030J	KEMET, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QR3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI23304040J	KEMET, 0.033µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76MD1470SE30J	KEMET, 4700pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QF04704000J	KEMET, 470pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI21004040J	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30K	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QI23304040J	KEMET, 0.033µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI21004040J	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR31004040J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

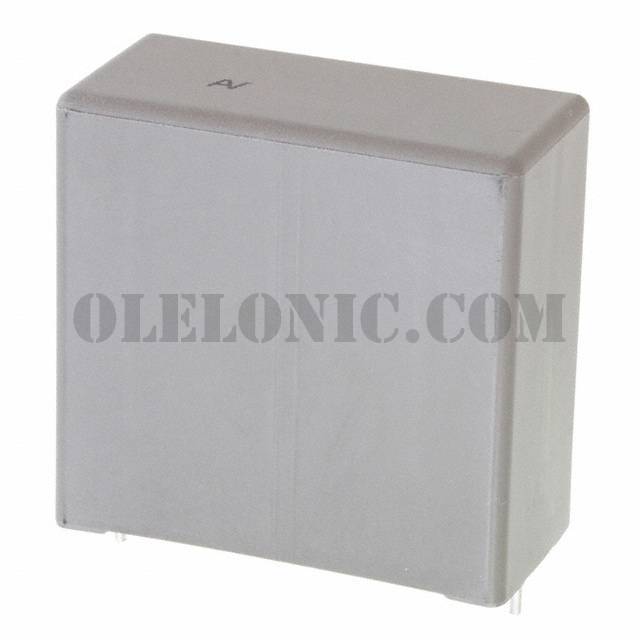

R76TN3100SE40K

Part NumberR76TN3100SE40K
