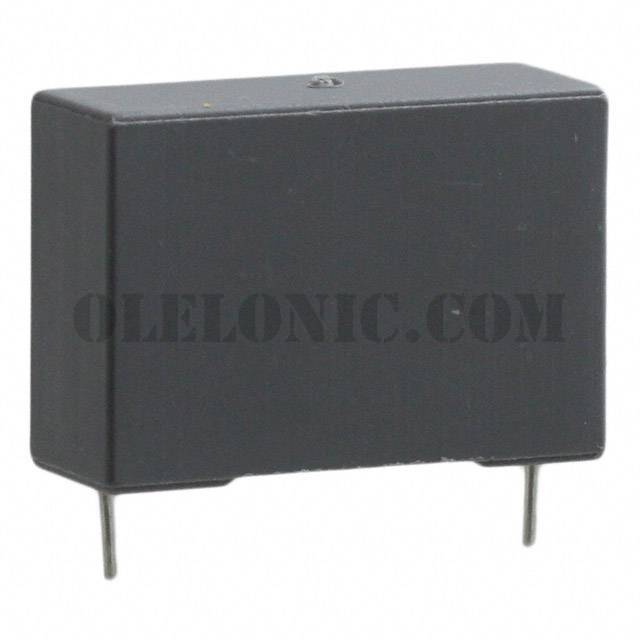

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	396
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.394" W (26.50mm x 10.00mm)
Height - Seated (Max)	0.732" (18.60mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
