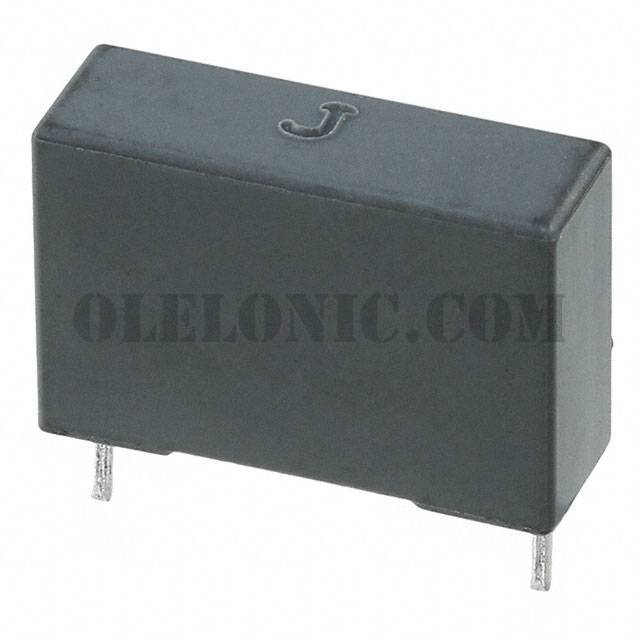

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1750
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.022µF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max)	0.476" (12.10mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
