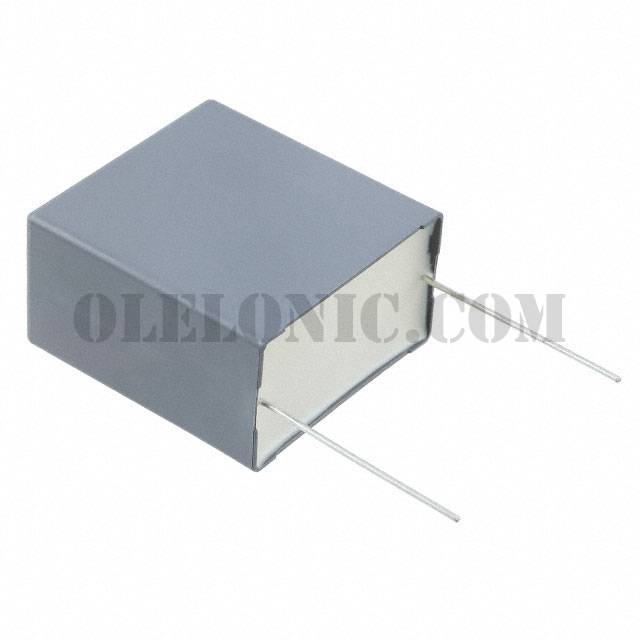

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	72
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±5%
Voltage Rating - AC	220V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max)	1.736" (44.10mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-
