Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	700
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage Rating - AC	250V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75PD1680Z340J	KEMET, 6800pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75MW51004030J	KEMET, 10µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75QR34704010J	KEMET, 0.47µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75PD1680DQ40J	KEMET, 6800pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75IF3100DQ00J	KEMET, 0.1µF Film Capacitor 140V 250V Polypropylene (PP), Metallized Radial, R75	View
R75QD0470Z330J	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75UI2150CK70J	KEMET, 0.015µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75PF21004030J	KEMET, 10000pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75MI3100AA30K	KEMET, 0.1µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75II3390AA40J	KEMET, 0.39µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75IN42204040J	KEMET, 2.2µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75TI1560AA30J	KEMET, 5600pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View

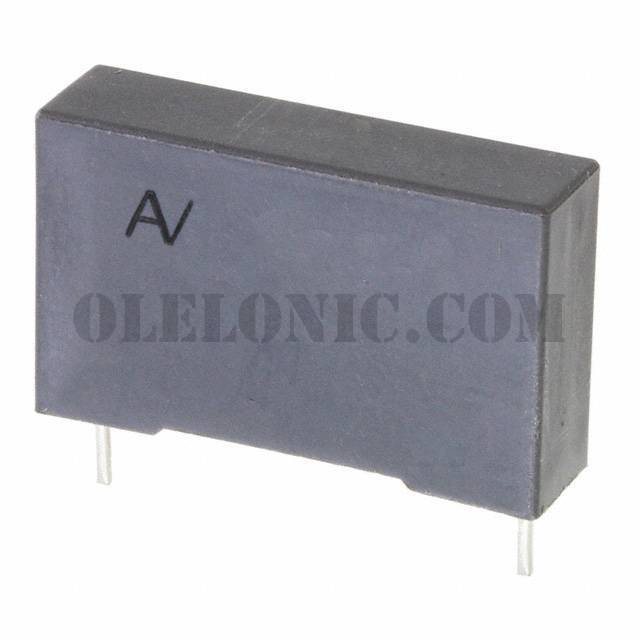

R75QN3100AA00K

Part NumberR75QN3100AA00K
