R6030JNZ4C13

R6030JNZ4C13

Part NumberR6030JNZ4C13

ManufacturerRohm Semiconductor

DescriptionR6030JNZ4 IS A POWER MOSFET WITH

DatasheetR6030JNZ4

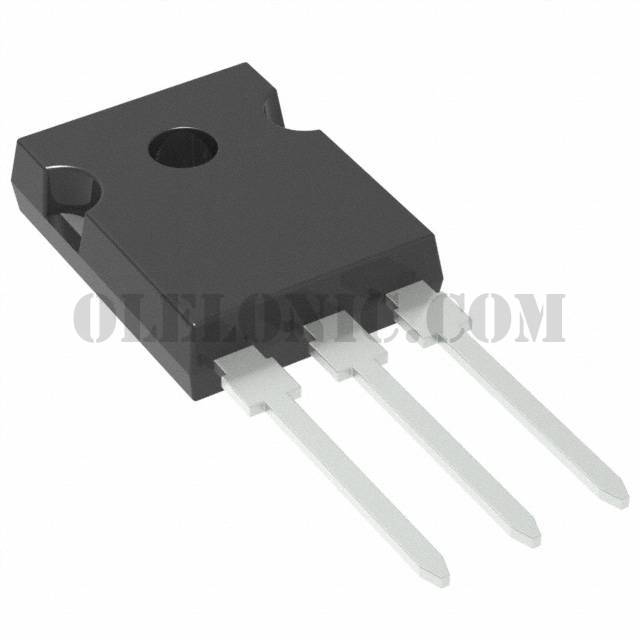

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 30A (Tc) 370W (Tc) Through Hole TO-247G

To learn about the specification of R6030JNZ4C13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add R6030JNZ4C13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of R6030JNZ4C13.
We are offering R6030JNZ4C13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

R6030JNZ4C13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	R6030JNZ4
Standard Package	30
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	143mOhm @ 15A, 15V
Vgs(th) (Max) @ Id	7V @ 5.5mA
Gate Charge (Qg) (Max) @ Vgs	74nC @ 15V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2500pF @ 100V
FET Feature	-
Power Dissipation (Max)	370W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247G
Package / Case	TO-247-3
