PMDXB950UPEZ

PMDXB950UPEZ

Part NumberPMDXB950UPEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET 2P-CH 20V 0.5A 6DFN

DatasheetPMDXB950UPE

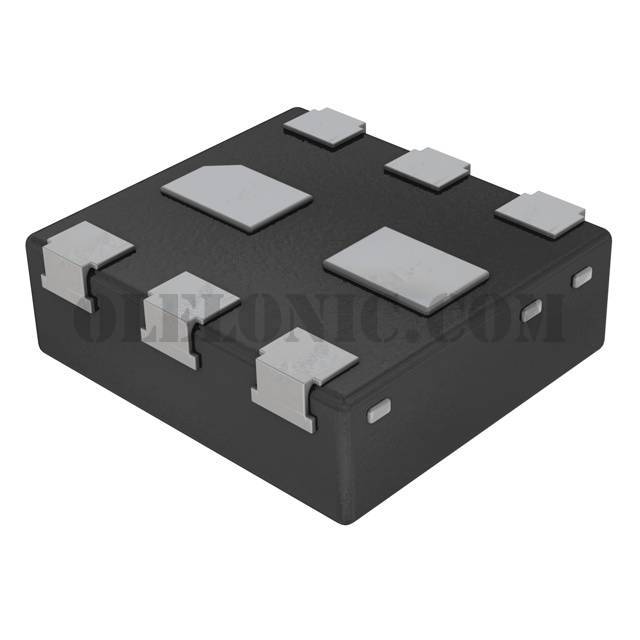

Package / Case6-XFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 500mA 265mW Surface Mount DFN1010B-6

To learn about the specification of PMDXB950UPEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMDXB950UPEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMDXB950UPEZ.
We are offering PMDXB950UPEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMDXB950UPEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	PMDXB950UPE
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	500mA
Rds On (Max) @ Id, Vgs	1.4Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	43pF @ 10V
Power - Max	265mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1010B-6
