PMCM6501VPEZ

PMCM6501VPEZ

Part NumberPMCM6501VPEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET P-CH 12V 6WLCSP

DatasheetPMCM6501VPE

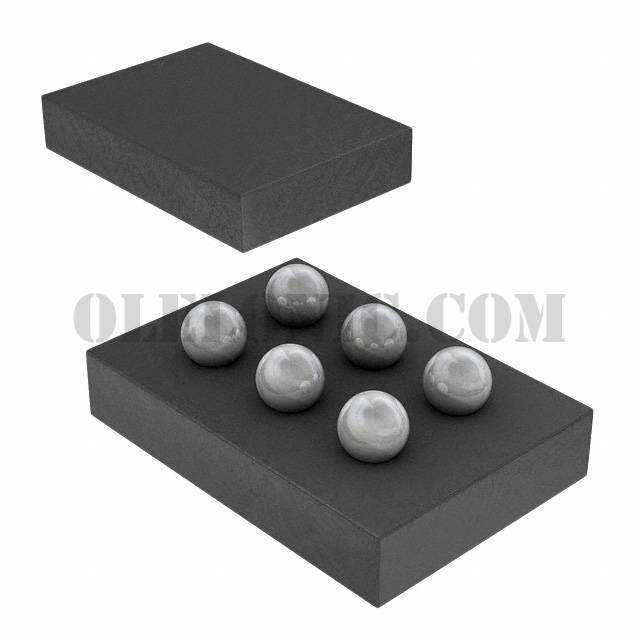

Package / Case6-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 6.2A (Ta) 556mW (Ta), 12.5W (Tc) Surface Mount 6-WLCSP (1.48x.98)

To learn about the specification of PMCM6501VPEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMCM6501VPEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMCM6501VPEZ.
We are offering PMCM6501VPEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMCM6501VPEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMCM6501VPE
Standard Package	4500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	6.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	25mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29.4nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 6V
FET Feature	-
Power Dissipation (Max)	556mW (Ta), 12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.48x.98)
Package / Case	6-XFBGA, WLCSP
