PMCM4402UPEZ

PMCM4402UPEZ

Part NumberPMCM4402UPEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET P-CHANNEL 20V 4WLCSP

DatasheetPMCM4402UPE

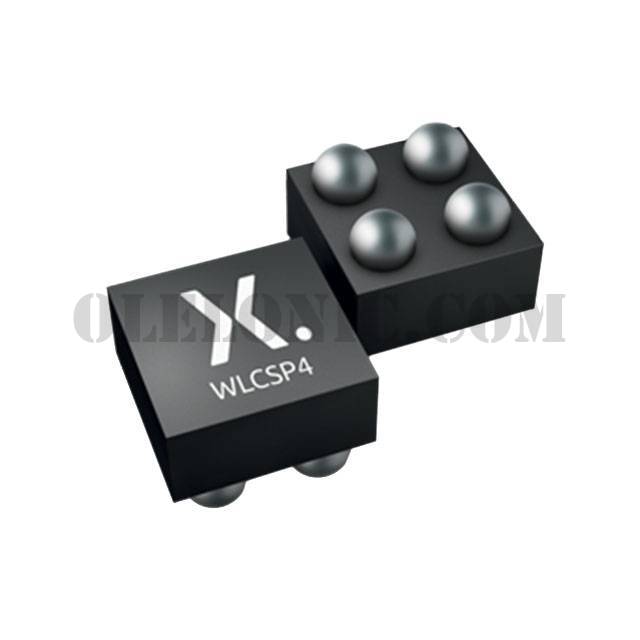

Package / Case4-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 400mW Surface Mount 4-WLCSP (2x2)

To learn about the specification of PMCM4402UPEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMCM4402UPEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMCM4402UPEZ.
We are offering PMCM4402UPEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMCM4402UPEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMCM4402UPE
Standard Package	9000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	6.2nC @ 4.5V
Vgs (Max)	-
FET Feature	-
Power Dissipation (Max)	400mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (2x2)
Package / Case	4-XFBGA, WLCSP
