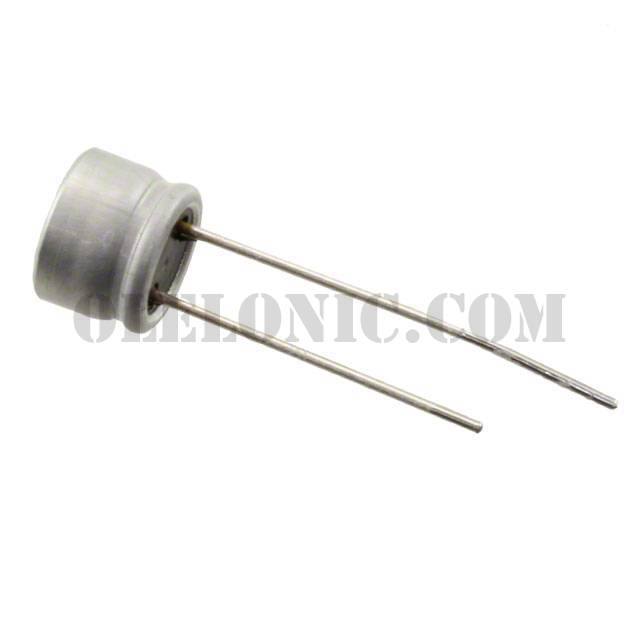

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	1000
Manufacturer	Nichicon
Series	PLF
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	60mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.5A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF1C101MDL4TD	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 24mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D470MCL2	Nichicon, 47µF 20V Aluminum Polymer Capacitor Radial, Can 45mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G561MDO1TD	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A101MDL4TD	Nichicon, 100µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E561MCO8TD	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E470MDO2TD	Nichicon, 47µF 25V Aluminum Polymer Capacitor Radial, Can 30mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E560MDO2TD	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E470MDO2TD	Nichicon, 47µF 25V Aluminum Polymer Capacitor Radial, Can 30mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E681MCO6TD	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C271MDO1TD	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E391MDL4TD	Nichicon, 390µF 2.5V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A680MDL4	Nichicon, 68µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View

PLF1E100MCL2TP

Part NumberPLF1E100MCL2TP
