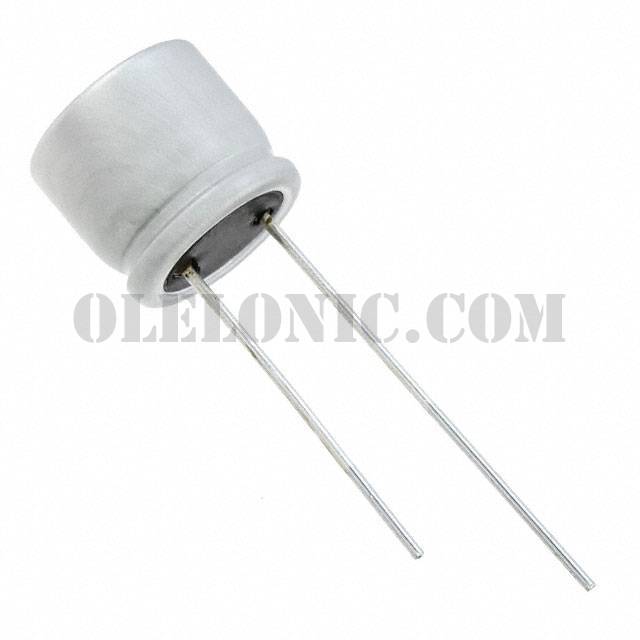

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	1
Manufacturer	Nichicon
Series	PLF
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	40mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.6A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF1A101MDL4TD	Nichicon, 100µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A561MDO1TD	Nichicon, 560µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A681MDO1TD	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G102MDO1TD	Nichicon, 1000µF 4V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E681MCO6TD	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A681MDO1TD	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E560MDO2TD	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E100MCL2TP	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 60mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E6R8MCL2TP	Nichicon, 6.8µF 25V Aluminum Polymer Capacitor Radial, Can 80mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E6R8MCL2	Nichicon, 6.8µF 25V Aluminum Polymer Capacitor Radial, Can 80mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G391MDL4TD	Nichicon, 390µF 4V Aluminum Polymer Capacitor Radial, Can 24mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E102MDO1TD	Nichicon, 1000µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View

PLF1D820MCL2TD

Part NumberPLF1D820MCL2TD
