PL8205NL
PL8205NL

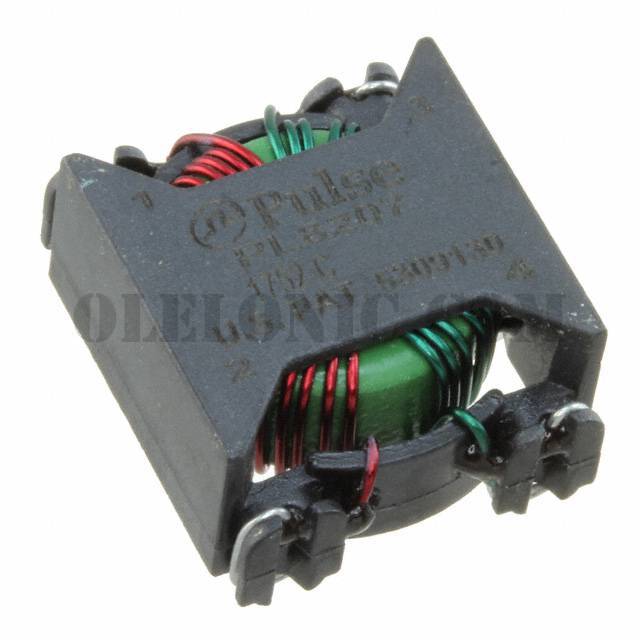

Part Number PL8205NL Description COMMON MODE CHOKE 4.7A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 4.7A DCR 40mOhm
To learn about the specification of PL8205NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PL8205NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PL8205NL.
We are offering PL8205NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PL8205NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SLIC Series Datasheet Standard Package 30 Manufacturer PulseR Series - Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Current Rating (Max) 4.7A DC Resistance (DCR) (Max) 40mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -55°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm) Height (Max) 0.390" (9.91mm) Package / Case Horizontal, 4 PC Pad
