PL8200
PL8200

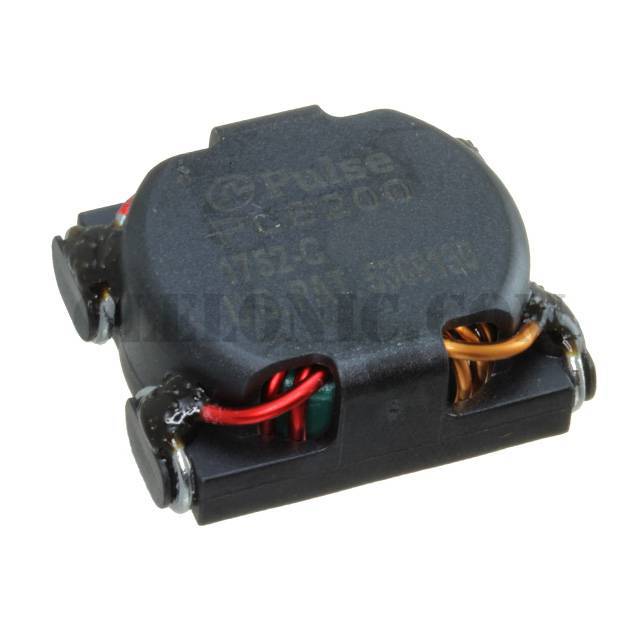

Part Number PL8200 Description COMMON MODE CHOKE 14A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 14A DCR 8mOhm
To learn about the specification of PL8200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PL8200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PL8200.
We are offering PL8200 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PL8200 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SLIC Series Datasheet Standard Package 15 Manufacturer PulseR Series - Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Current Rating (Max) 14A DC Resistance (DCR) (Max) 8mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -55°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm) Height (Max) 0.500" (12.70mm) Package / Case Horizontal, 4 PC Pad
