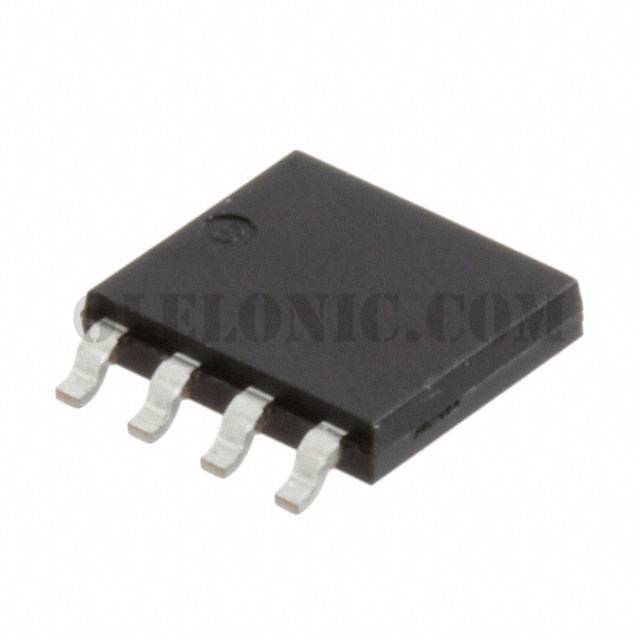

PHPT610035NKX

PHPT610035NKX

Part NumberPHPT610035NKX

ManufacturerNexperia USA Inc.

DescriptionTRANS 2NPN 100V 3A LFPAK

DatasheetPHPT610035NK

Package / CaseSOT-1205, 8-LFPAK56

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) 100V 3A 140MHz 1.25W Surface Mount LFPAK56D

To learn about the specification of PHPT610035NKX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PHPT610035NKX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PHPT610035NKX.
We are offering PHPT610035NKX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PHPT610035NKX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	PHPT610035NK
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	330mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 10V
Power - Max	1.25W
Frequency - Transition	140MHz
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-1205, 8-LFPAK56
Supplier Device Package	LFPAK56D
