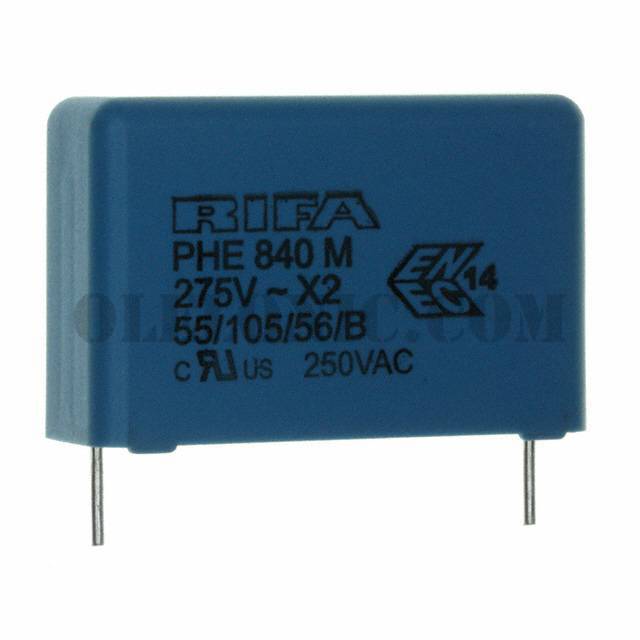

Categories	Capacitors / Film Capacitors
Datasheet	PHE840M Series
Standard Package	216
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.413" W (31.50mm x 10.50mm)
Height - Seated (Max)	0.807" (20.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-

PHE840MB6150MB10R17	KEMET, 0.15µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6390MD14R06L2	KEMET, 0.39µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MR7220MR05R06L2	KEMET, 2.2µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5330MK03R17	KEMET, 0.033µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MX6220MB06R17	KEMET, 0.22µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6220KB12R17	KEMET, 0.22µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MY6470MD14R06L2	KEMET, 0.47µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6120MB10R17	KEMET, 0.12µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6470MB16R17	KEMET, 0.47µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5150MK01R17	KEMET, 0.015µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6330KD17R06L2	KEMET, 0.33µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MF7120MF03R06L2	KEMET, 1.2µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View

PHE840MZ7100MF11R06L2

Part NumberPHE840MZ7100MF11R06L2
