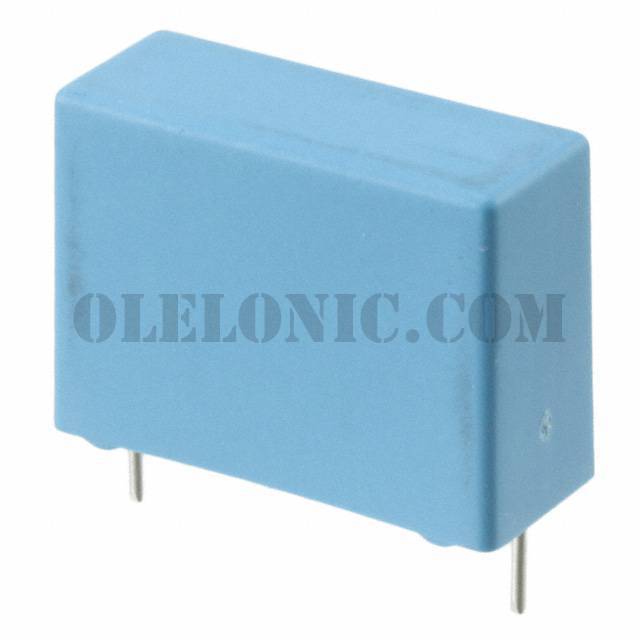

Categories	Capacitors / Film Capacitors
Datasheet	PHE840MD6680KD18R06L2
Standard Package	264
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	0.68µF
Tolerance	±10%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.413" W (26.00mm x 10.50mm)
Height - Seated (Max)	0.748" (19.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-
