PH9455.826NL
PH9455.826NL

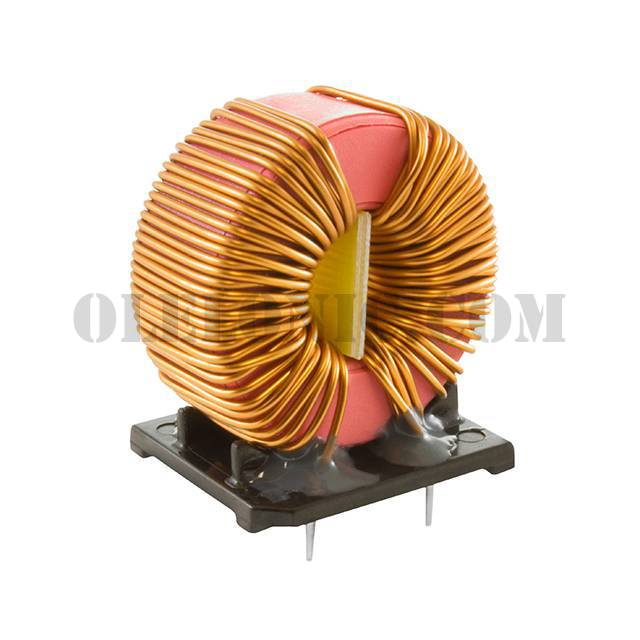

Part Number PH9455.826NL Description CMC 82MH 3A 2LN 37 KOHM TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 82mH @ 130kHz 2 Line Common Mode Choke Through Hole 37 kOhms @ 130kHz 3A DCR 150mOhm
To learn about the specification of PH9455.826NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PH9455.826NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PH9455.826NL.
We are offering PH9455.826NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PH9455.826NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet PH9455.zzzNL Series Standard Package 45 Manufacturer Pulse Electronics Power Series - Packaging Tube Part Status Active Filter Type - Number of Lines 2 Impedance @ Frequency 37 kOhms @ 130kHz Inductance @ Frequency 82mH @ 130kHz Current Rating (Max) 3A DC Resistance (DCR) (Max) 150mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.181" L x 0.748" W (30.00mm x 19.00mm) Height (Max) 1.102" (28.00mm) Package / Case Vertical, 4 PC Pin
