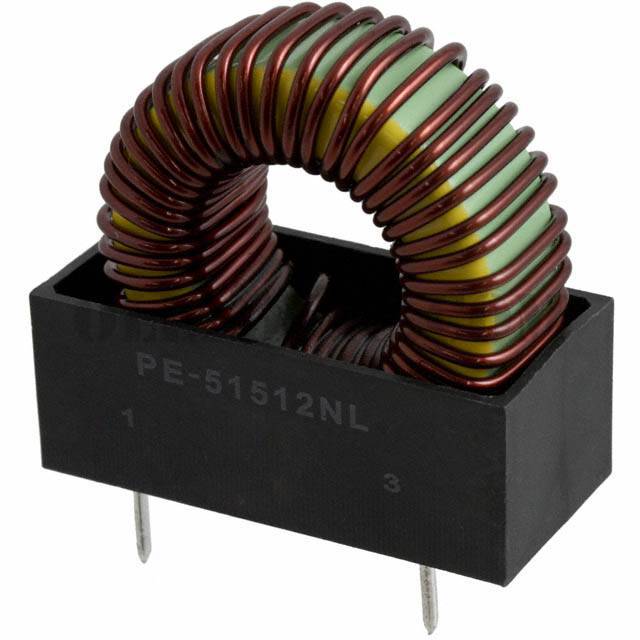

PE-51512NL

PE-51512NL

Part NumberPE-51512NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 90UH 10A 28 MOHM TH

DatasheetPE-515xx High Current Inductors

Package / CaseRadial, Vertical, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description90µH Unshielded Toroidal Inductor 10A 28mOhm Max Radial, Vertical, 4 Leads (Open)

To learn about the specification of PE-51512NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-51512NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-51512NL.
We are offering PE-51512NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-51512NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	PE-515xx High Current Inductors
Standard Package	10
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tube
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	90µH
Tolerance	-
Current Rating (Amps)	10A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	28mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Inductance Frequency - Test	50kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical, 4 Leads (Open)
Supplier Device Package	-
Size / Dimension	1.950" L x 0.910" W (49.53mm x 23.11mm)
Height - Seated (Max)	2.000" (50.80mm)
