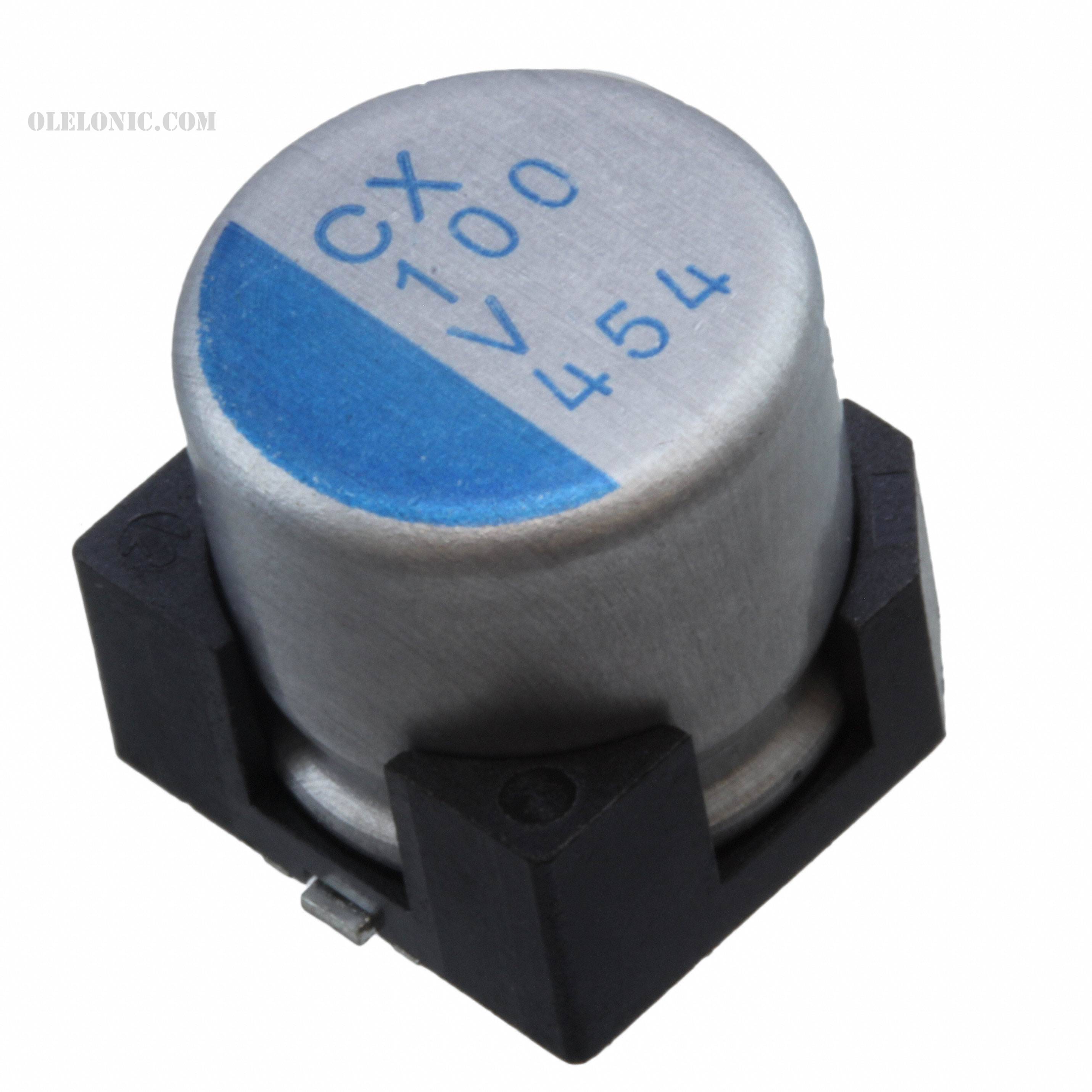

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCX Series
Standard Package	1
Manufacturer	Nichicon
Series	PCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.4A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCX1E390MCL1GS	Nichicon, 39µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D560MCL1GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D560MCL1GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V180MCS1GS	Nichicon, 18µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 60mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E390MCL1GS	Nichicon, 39µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E560MCL1GS	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX	View
PCX1V560MCL1GS	Nichicon, 56µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 33mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V390MCS1GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E820MCL1GS	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 36mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D121MCL1GS	Nichicon, 120µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H100MCL1GS	Nichicon, 10µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 75mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H470MCL1GS	Nichicon, 47µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 3000 Hrs @ 125°C, PCX	View

PCX1V101MCS1GS

Part NumberPCX1V101MCS1GS
