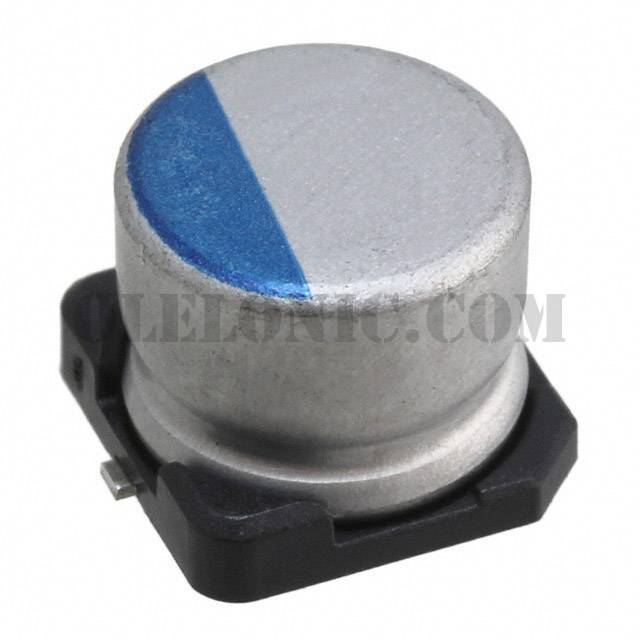

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCX Series
Standard Package	1
Manufacturer	Nichicon
Series	PCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	39µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	55mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.2A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCX1C221MCL1GS	Nichicon, 220µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V180MCL1GS	Nichicon, 18µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 60mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H5R6MCL1GS	Nichicon, 5.6µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 105mOhm 1500 Hrs @ 125°C, PCX	View
PCX1V180MCS1GS	Nichicon, 18µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 60mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E181MCL1GS	Nichicon, 180µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 125°C, PCX	View
PCX1C820MCL1GS	Nichicon, 82µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V270MCS1GS	Nichicon, 27µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 1500 Hrs @ 125°C, PCX	View
PCX1C271MCL1GS	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E560MCL1GS	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX	View
PCX1C151MCL1GS	Nichicon, 150µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 33mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V560MCL1GS	Nichicon, 56µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 33mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H100MCL1GS	Nichicon, 10µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 75mOhm 3000 Hrs @ 125°C, PCX	View

PCX1E390MCL1GS

Part NumberPCX1E390MCL1GS
