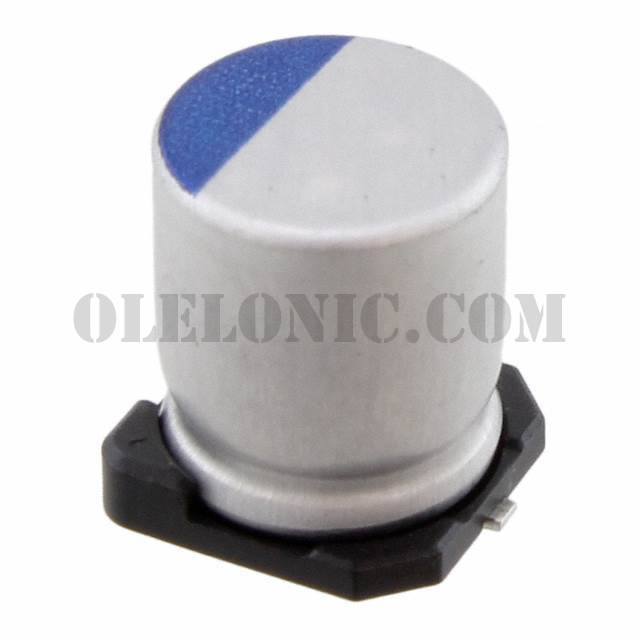

PCX1V390MCL6GS


PCX1V390MCL6GS

Part NumberPCX1V390MCL6GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PCX1V390MCL6GS - Product Attributes

Categories Capacitors / Aluminum - Polymer Capacitors
Datasheet
Standard Package500
ManufacturerNichicon
SeriesPCX
PackagingTape & Reel (TR)
Part StatusActive
TypePolymer
Capacitance39µF
Tolerance±20%
Voltage - Rated35V
ESR (Equivalent Series Resistance)35mOhm
Lifetime @ Temp.3000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ High Frequency1.8A @ 100kHz
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.394" (10.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
