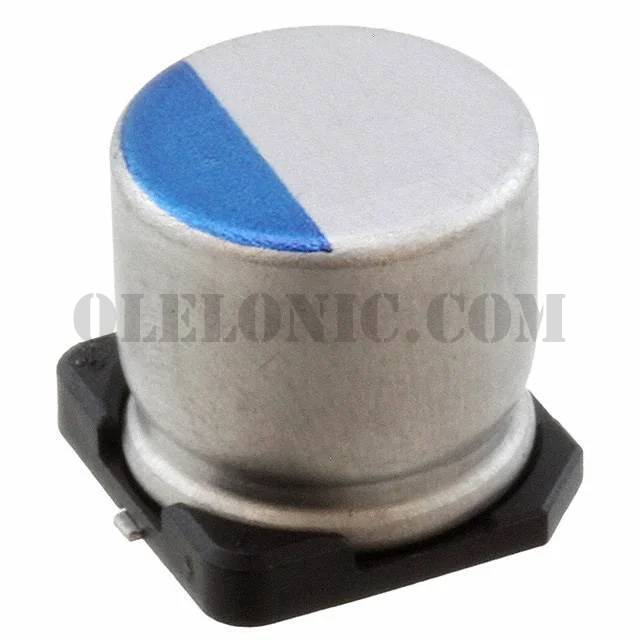

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PCV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	33mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.9A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1H101MCL2GS	Nichicon, 100µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D331MCL2GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D151MCL6GS	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B8R2MCL1GS	Nichicon, 8.2µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 84mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B120MCL1GS	Nichicon, 12µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 69mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D271MCL2GS	Nichicon, 270µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V390MCL2GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 52mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V101MCL1GS	Nichicon, 100µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C471MCL1GS	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V121MCL2GS	Nichicon, 120µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J220MCL1GS	Nichicon, 22µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 56mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J220MCL6GS	Nichicon, 22µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 37mOhm 3000 Hrs @ 105°C, PCV	View

PCV1D151MCL1GS

Part NumberPCV1D151MCL1GS
