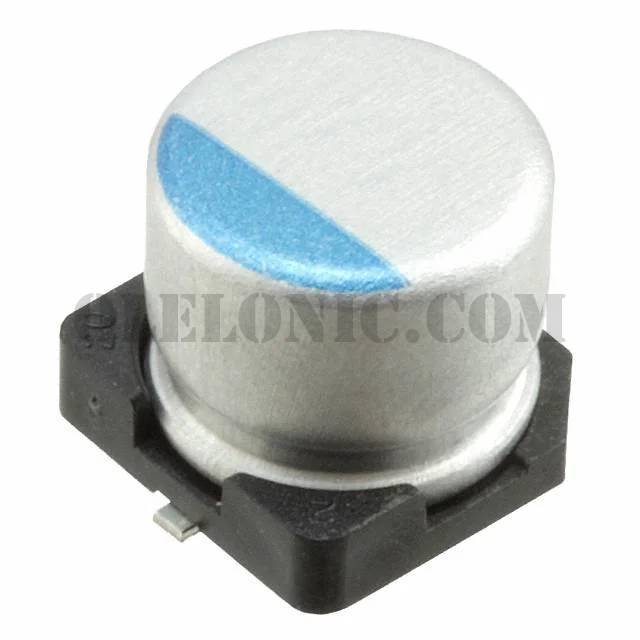

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PCV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	50mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1D680MCL1GS	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V151MCL1GS	Nichicon, 150µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D471MCL2GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H680MCL1GS	Nichicon, 68µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V270MCL1GS	Nichicon, 27µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E820MCL2GS	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 47mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D560MCL2GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 48mOhm 3000 Hrs @ 105°C, PCV	View
PCV1K150MCL1GS	Nichicon, 15µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 39mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E151MCL7GS	Nichicon, 150µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V390MCL2GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 52mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D560MCL2GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 48mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V820MCL1GS	Nichicon, 82µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 105°C, PCV	View

PCV1C560MCL1GS

Part NumberPCV1C560MCL1GS
