Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	PCV
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	45mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.3A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1V151MCL1GS	Nichicon, 150µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H120MCL2GS	Nichicon, 12µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 105°C, PCV	View
PCV1K120MCL1GS	Nichicon, 12µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 41mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J270MCL2GS	Nichicon, 27µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 38mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J330MCL1GS	Nichicon, 33µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C331MCL1GS	Nichicon, 330µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C681MCL2GS	Nichicon, 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D680MCL1GS	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J8R2MCL2GS	Nichicon, 8.2µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 56mOhm 3000 Hrs @ 105°C, PCV	View
PCV1K220MCL1GS	Nichicon, 22µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 38mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D331MCL2GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J100MCL1GS	Nichicon, 10µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 75mOhm 3000 Hrs @ 105°C, PCV	View

PCV1D680MCL1GS

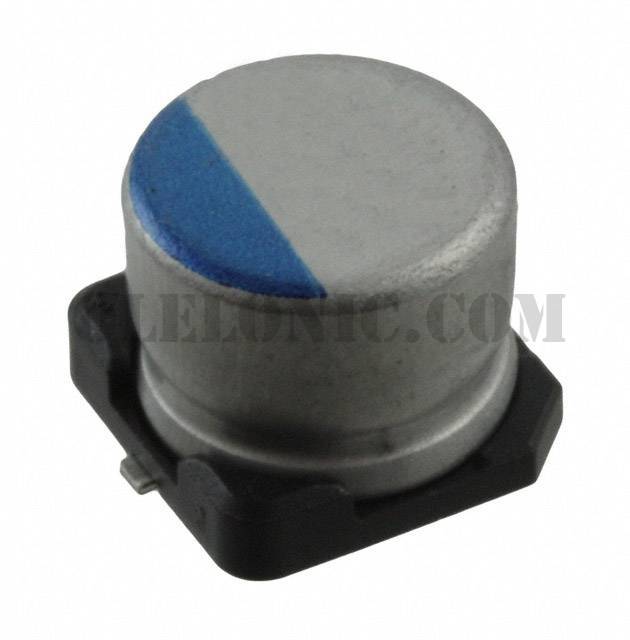

Part NumberPCV1D680MCL1GS
