Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCR Series
Standard Package	500
Manufacturer	Nichicon
Series	PCR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	23mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCR1H121MCL1GS	Nichicon, 120µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H121MCL2GS	Nichicon, 120µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H390MCL1GS	Nichicon, 39µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D151MCL1GS	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 39mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H121MCL1GS	Nichicon, 120µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H181MCL1GS	Nichicon, 180µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C, PCR	View
PCR1K680MCL1GS	Nichicon, 68µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D331MCL1GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C681MCL1GS	Nichicon, 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D471MCL1GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 18mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D331MCL1GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 4000 Hrs @ 125°C, PCR	View
PCR1V331MCL1GS	Nichicon, 330µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 16mOhm 4000 Hrs @ 125°C, PCR	View

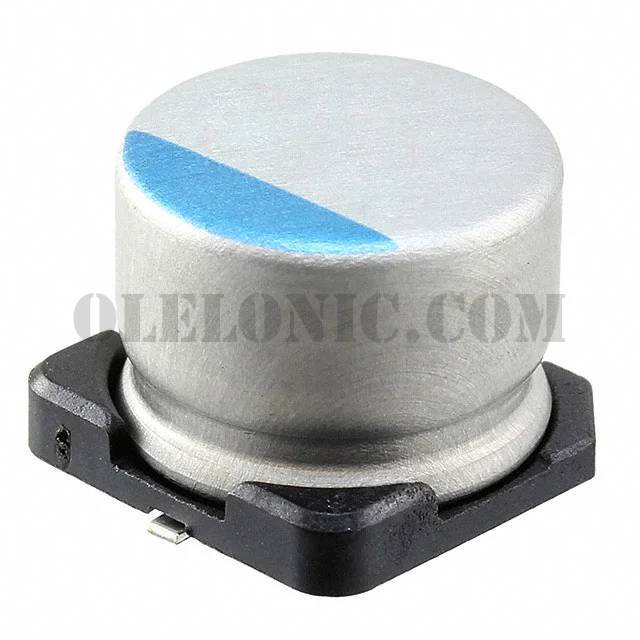

PCR1D331MCL1GS

Part NumberPCR1D331MCL1GS
