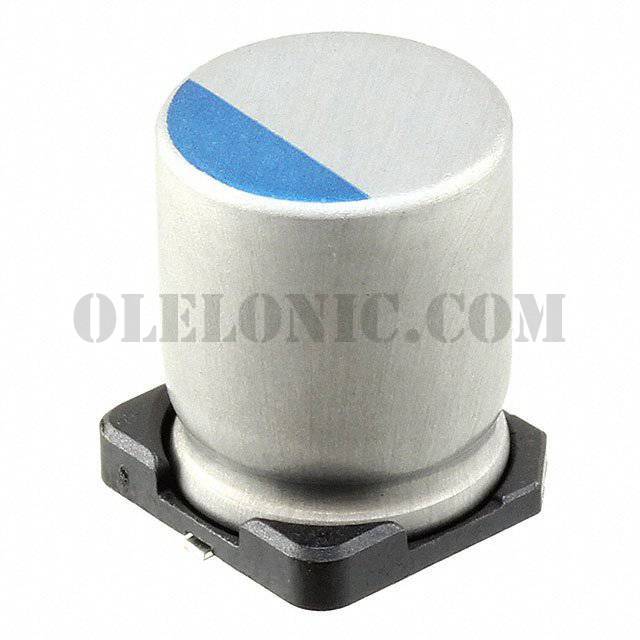

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCR Series
Standard Package	1
Manufacturer	Nichicon
Series	PCR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	16mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	3.9A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
