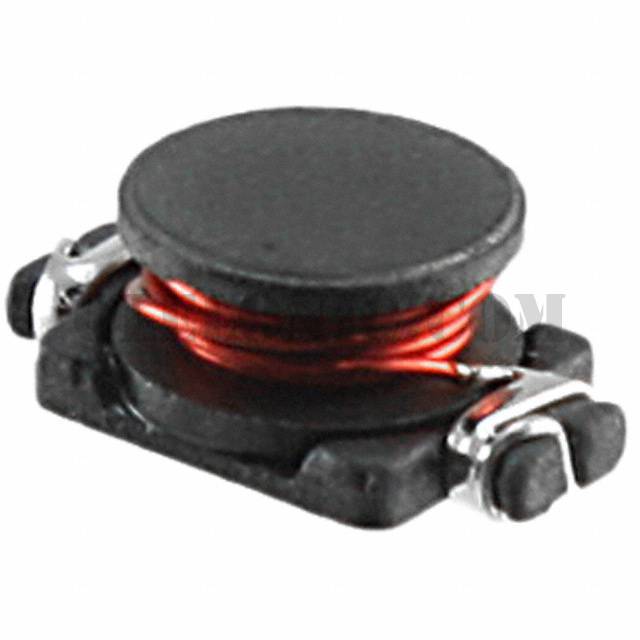

P0770.103NLT


P0770.103NLT

Part NumberP0770.103NLT

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

P0770.103NLT - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerPulse Electronics Power
SeriesP0770NL
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - Core-
Inductance10µH
Tolerance±20%
Current Rating (Amps)1.1A
Current - Saturation1.1A
ShieldingUnshielded
DC Resistance (DCR)160mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 130°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)0.115" (2.92mm)
