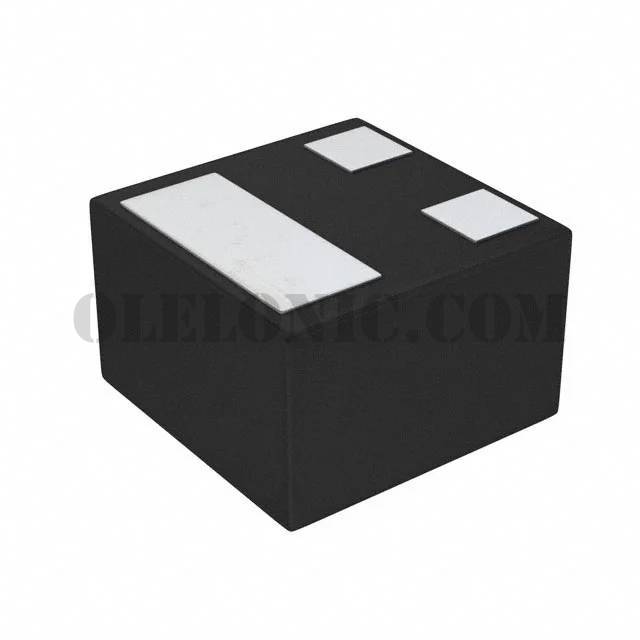

NTNS3A91PZT5G

NTNS3A91PZT5G

Part NumberNTNS3A91PZT5G

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 0.223A XLLGA3

DatasheetNTNS3A91PZ

Package / Case3-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 223mA (Ta) 121mW (Ta) Surface Mount 3-XLLGA (0.62x0.62)

To learn about the specification of NTNS3A91PZT5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTNS3A91PZT5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTNS3A91PZT5G.
We are offering NTNS3A91PZT5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTNS3A91PZT5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTNS3A91PZ
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	223mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.6Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.1nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	41pF @ 15V
FET Feature	-
Power Dissipation (Max)	121mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-XLLGA (0.62x0.62)
Package / Case	3-XFLGA
