NTLJS4114NT1G

NTLJS4114NT1G

Part NumberNTLJS4114NT1G

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 3.6A 6-WDFN

DatasheetNTLJS4114N

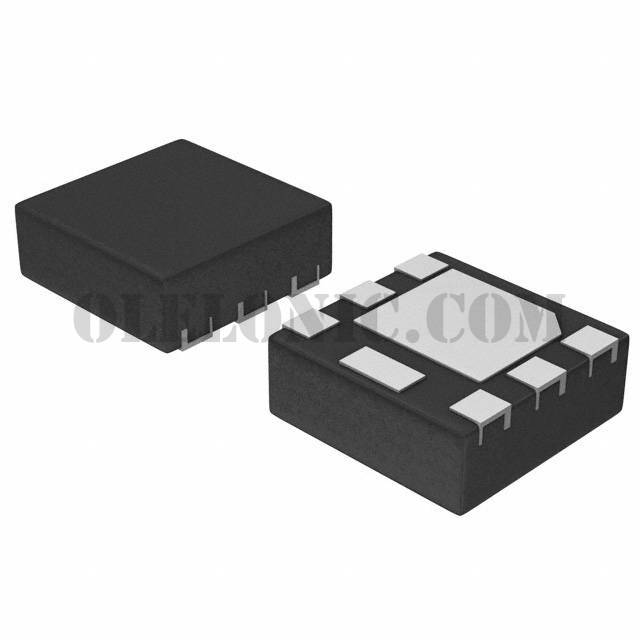

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)

To learn about the specification of NTLJS4114NT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLJS4114NT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLJS4114NT1G.
We are offering NTLJS4114NT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLJS4114NT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLJS4114N
Standard Package	1
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	35mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 15V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Package / Case	6-WDFN Exposed Pad
