NTLJF4156NT1G

NTLJF4156NT1G

Part NumberNTLJF4156NT1G

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 2.5A 6-WDFN

DatasheetNTLJF4156N

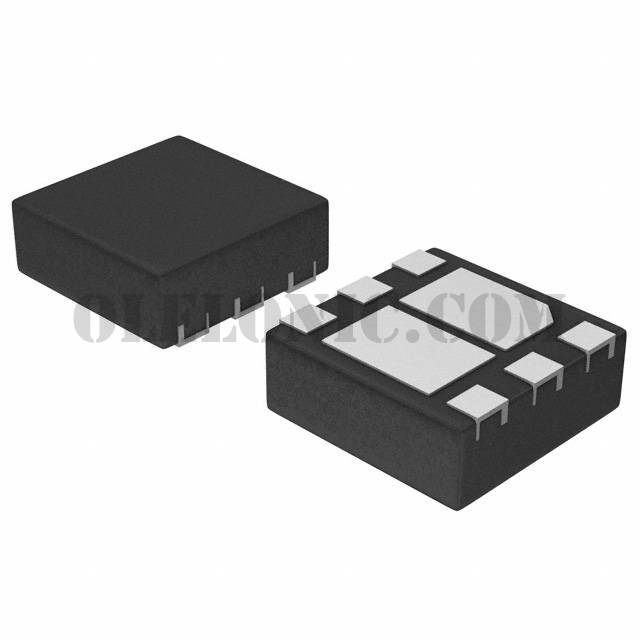

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 2.5A (Tj) 710mW (Ta) Surface Mount 6-WDFN (2x2)

To learn about the specification of NTLJF4156NT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLJF4156NT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLJF4156NT1G.
We are offering NTLJF4156NT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLJF4156NT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLJF4156N
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	70mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	427pF @ 15V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	710mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Package / Case	6-WDFN Exposed Pad
