NGTB40N120FL2WAG
NGTB40N120FL2WAG
Part Number NGTB40N120FL2WAG

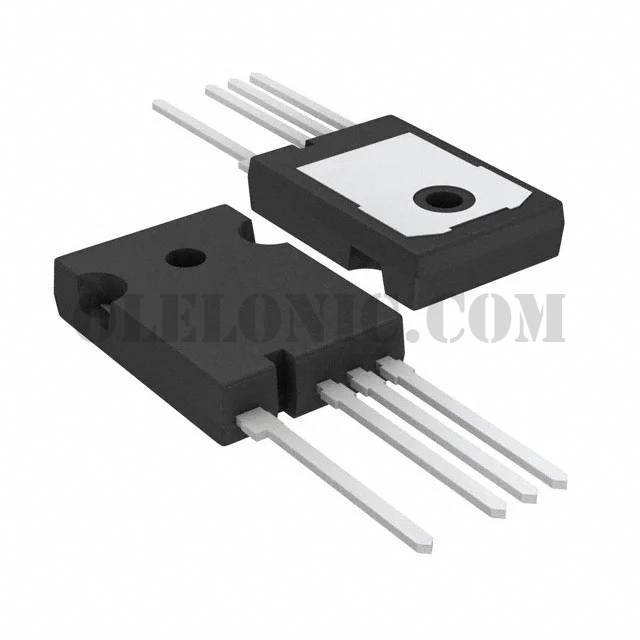

Description IGBT FIELD STOP 1200V TO247-4
Package / Case TO-247-4
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Field Stop 1200V 160A 536W Through Hole TO-247-4L
To learn about the specification of NGTB40N120FL2WAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NGTB40N120FL2WAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NGTB40N120FL2WAG.
We are offering NGTB40N120FL2WAG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
NGTB40N120FL2WAG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet NGTB40N120FL2WAG
Standard Package 30
Manufacturer ON Semiconductor
Series -
Packaging Tube
Part Status Active
IGBT Type Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 160A
Current - Collector Pulsed (Icm) 160A
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40A
Power - Max 536W
Switching Energy 1.7mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 313nC
Td (on/off) @ 25°C 30ns/145ns
Test Condition 600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr) 240ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-4
Supplier Device Package TO-247-4L
