MTM231232LBF

MTM231232LBF

Part NumberMTM231232LBF

ManufacturerPanasonic Electronic Components

DescriptionMOSFET P-CH 20V 3A

DatasheetMTM231232LBF

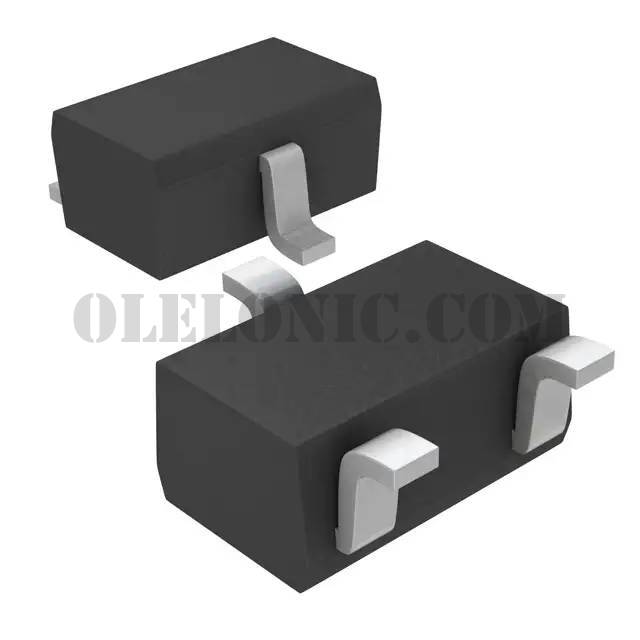

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3A (Ta) 500mW (Ta) Surface Mount SMini3-G1-B

To learn about the specification of MTM231232LBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MTM231232LBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MTM231232LBF.
We are offering MTM231232LBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MTM231232LBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MTM231232LBF
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	55mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SMini3-G1-B
Package / Case	SC-70, SOT-323
Base Part Number	MTM231232
