Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

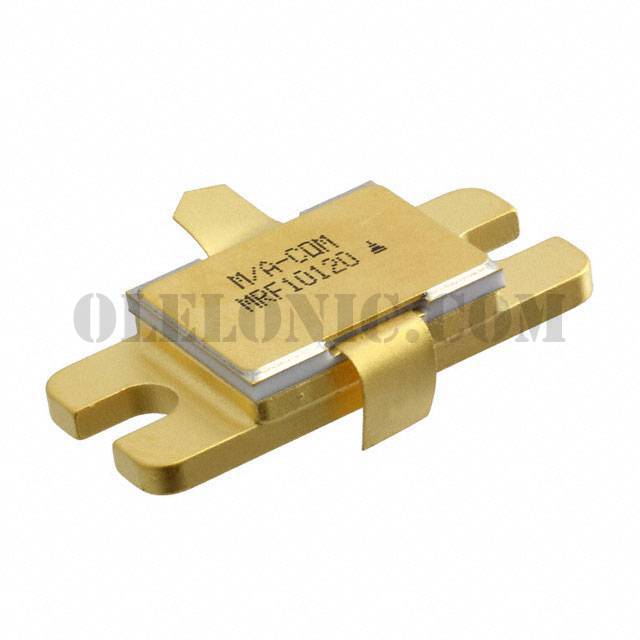

Datasheet	MRF10120
Standard Package	20
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	55V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Gain	8.5dB
Power - Max	120W
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 5A, 5V
Current - Collector (Ic) (Max)	15A
Operating Temperature	200°C (TJ)
Mounting Type	Chassis Mount
Package / Case	355C-02
Supplier Device Package	355C-02, Style 1
