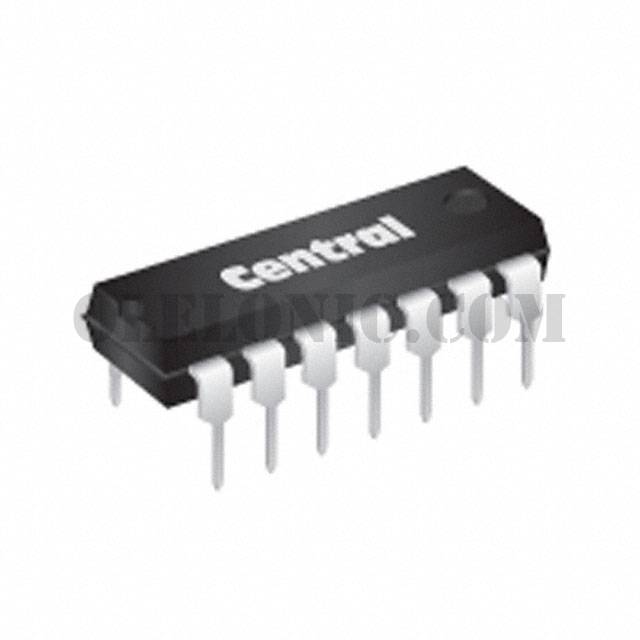

MPQ2222

MPQ2222

Part NumberMPQ2222

ManufacturerCentral Semiconductor Corp

DescriptionTRANS 4NPN 40V 0.5A

DatasheetMPQ2222(A)

Package / Case14-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 4 NPN (Quad) 40V 500mA 200MHz 650mW Through Hole TO-116

To learn about the specification of MPQ2222, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MPQ2222 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MPQ2222.
We are offering MPQ2222 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MPQ2222 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	MPQ2222(A)
Standard Package	25
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	4 NPN (Quad)
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 30mA, 300mA
Current - Collector Cutoff (Max)	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	650mW
Frequency - Transition	200MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	TO-116
