STA413A
STA413A

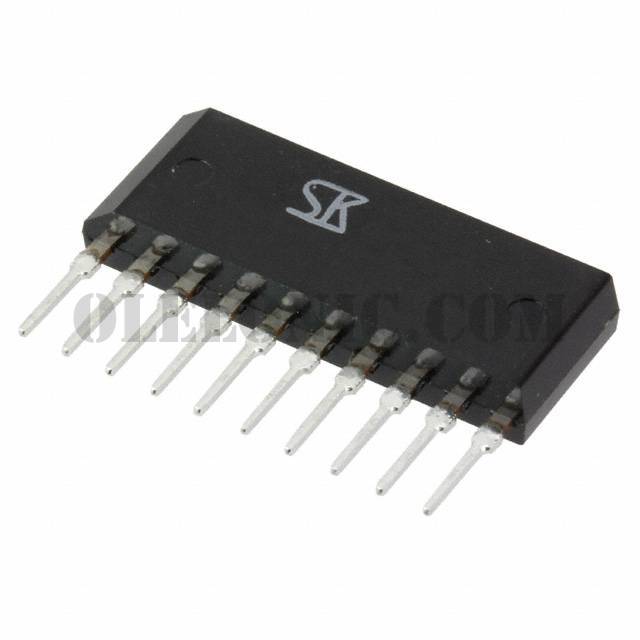

Part Number STA413A
Description TRANS 4NPN 35V 3A 10-SIP
Package / Case 10-SIP
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Bipolar (BJT) Transistor Array 4 NPN (Quad) 35V 3A 4W Through Hole 10-SIP
To learn about the specification of STA413A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STA413A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STA413A.
We are offering STA413A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STA413A - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet STA413A
Standard Package 50
Manufacturer Sanken
Series -
Packaging Bulk
Part Status Active
Transistor Type 4 NPN (Quad)
Current - Collector (Ic) (Max) 3A
Voltage - Collector Emitter Breakdown (Max) 35V
Vce Saturation (Max) @ Ib, Ic 500mV @ 5mA, 1A
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 500 @ 500mA, 4V
Power - Max 4W
Frequency - Transition -
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Package / Case 10-SIP
Supplier Device Package 10-SIP
