Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	MMBTH10M3T5G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	25V
Frequency - Transition	650MHz
Noise Figure (dB Typ @ f)	-
Gain	-
Power - Max	265mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 4mA, 10V
Current - Collector (Ic) (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

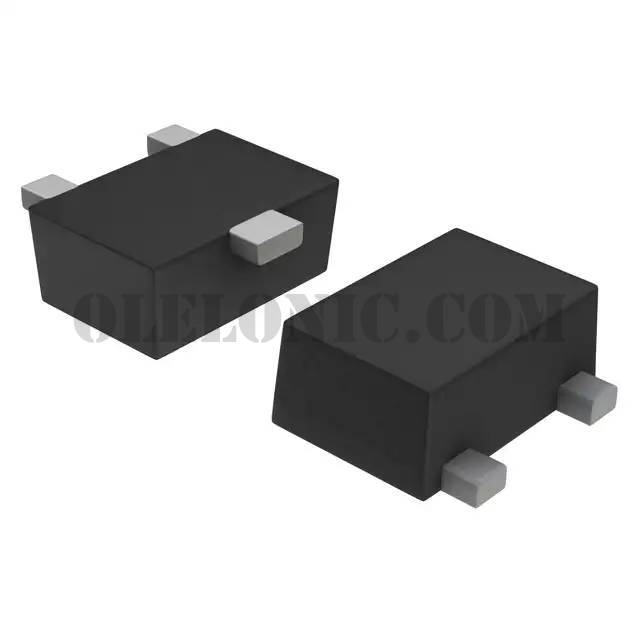

Package / Case	SOT-723
Supplier Device Package	SOT-723
Base Part Number	MMBTH10
