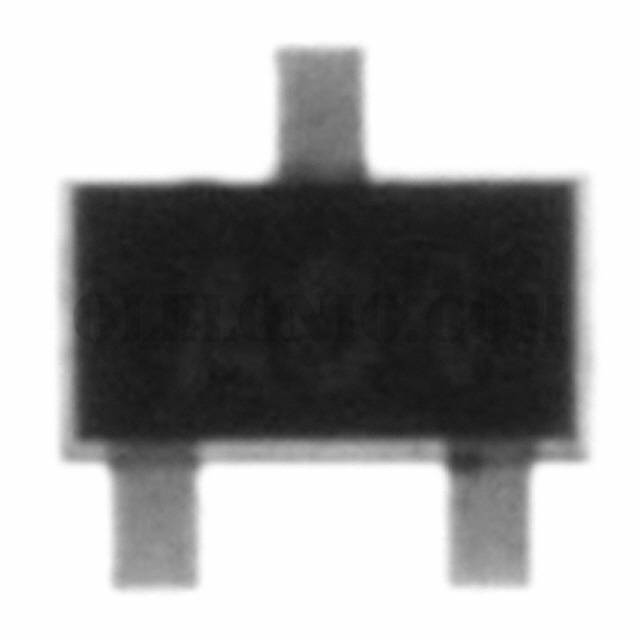

MMBT3904T


MMBT3904T

Part NumberMMBT3904T

Manufacturer

Description

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

MMBT3904T - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Standard Package3000
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)200mA
Voltage - Collector Emitter Breakdown (Max)40V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 1V
Power - Max250mW
Frequency - Transition300MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSOT-523F
Base Part NumberMMBT3904
