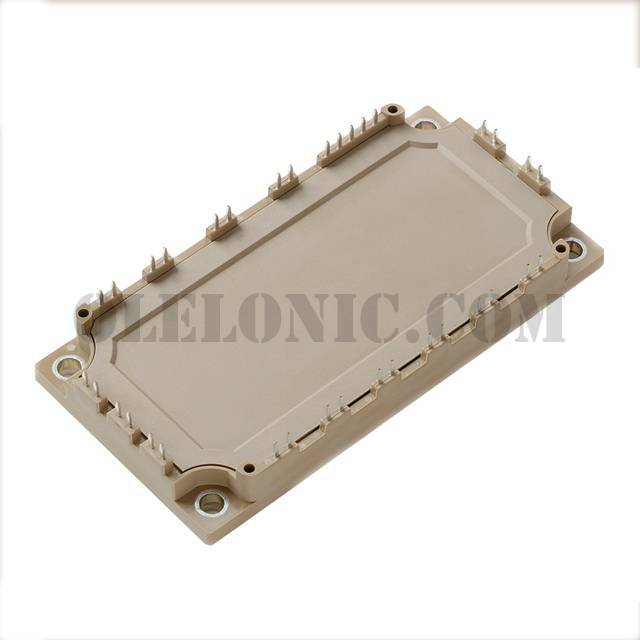

MG12150W-XN2MM

Part NumberMG12150W-XN2MM

ManufacturerLittelfuse Inc.

DescriptionIGBT MOD 1200V 150A PKG W CRCT:X

DatasheetMG12150W-XN2MM

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Phase Inverter 1200V 200A 625W Chassis Mount Module

To learn about the specification of MG12150W-XN2MM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MG12150W-XN2MM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MG12150W-XN2MM.
We are offering MG12150W-XN2MM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MG12150W-XN2MM - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

MG12150W-XN2MM

Standard Package

Manufacturer

Littelfuse Inc.

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Phase Inverter

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

200A

Power - Max

625W

Vce(on) (Max) @ Vge, Ic

1.7V @ 15V, 150A (Typ)

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

10.5nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module

MG12150W-XN2MM - Related Products

More >>

MG12150W-XN2MM

Littelfuse Inc., IGBT Module Trench Field Stop Three Phase Inverter 1200V 200A 625W Chassis Mount Module,
