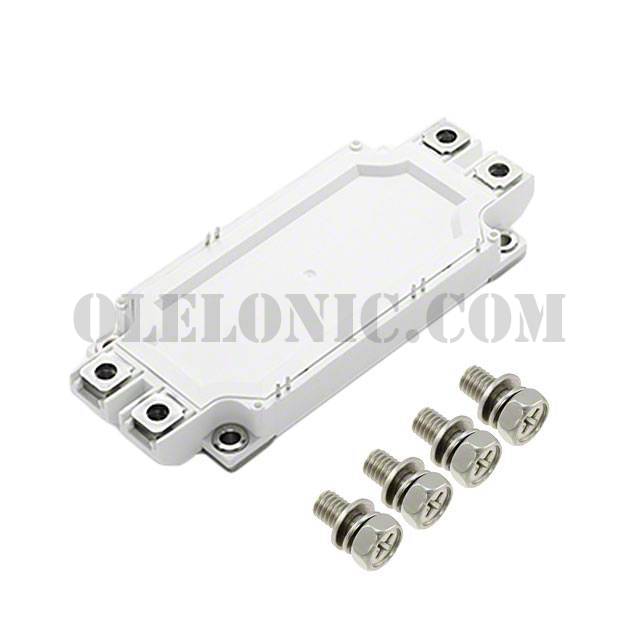

MG06600WB-BN4MM

Part NumberMG06600WB-BN4MM

ManufacturerLittelfuse Inc.

DescriptionIGBT 600V 700A 1500W PKG WB

DatasheetMG06600WB-BN4MM

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 600V 700A 1500W Chassis Mount Module

To learn about the specification of MG06600WB-BN4MM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MG06600WB-BN4MM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MG06600WB-BN4MM.
We are offering MG06600WB-BN4MM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MG06600WB-BN4MM - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

MG06600WB-BN4MM

Standard Package

Manufacturer

Littelfuse Inc.

Series

Part Status

Active

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

700A

Power - Max

1500W

Vce(on) (Max) @ Vge, Ic

1.45V @ 15V, 600A (Typ)

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

39nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
