Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MDB6S_8S_10S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 800V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

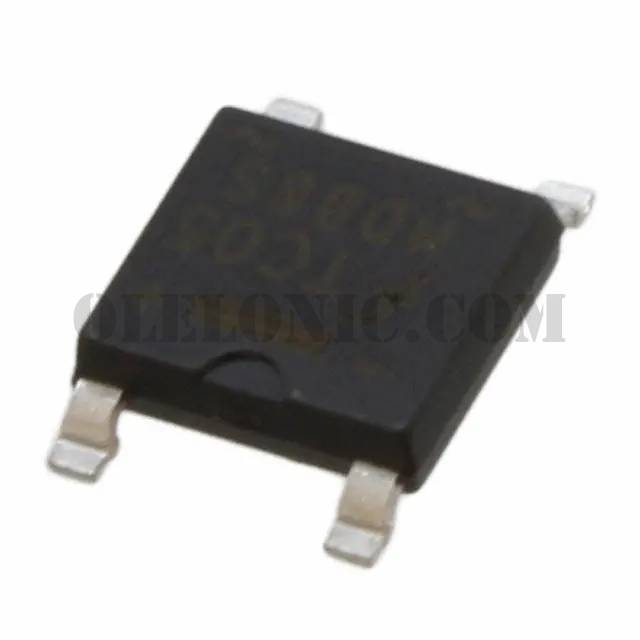

Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-MicroDIP/SMD
Base Part Number	MDB8
